RF2000 Fixed & Vehicle Mount RFID Reader

Air Interface Protocols

EPC global UHF Gen 2, ISO 18000-6C, EPC Class 1

Frequency Range

US : 902MHz ~ 928MHz, EU : 865.6MHz ~ 867.6MHz

Certifications

FCC, ETSI

Communications Interface

RS232, GPIO, Ethernet 100Mbps (RJ45 Connector) / IP67 Sealed Connectors

Environment

Operating Temperature : -20°C to 50°C (-13°F to 131°F)
Storage Temperature : -30°C to 75°C (-22°F to 167°F)
Humidity : 10% to 90% (non-condensing)
Environmental Protection : Sealed to IP65 (Dust tight and jetted water)

Vibration and Shock protection : Withstands standard material handling vehicle environments.
Meets or exceeds MIL STD 810F

Physical Characteristics

Length: 223mm (9 in.) / Width: 192mm (6.5 in.) / Height: 68mm (2.67 in.)
Weight: 1.57kg (3.5 lbs)

User Interface

Indicator : 8 LED ( NETWORK, DATA, ERROR, POWER, ANTENNA 1-4)

Power

AC/DC Converter input 110/220V (25 watts) AC for output 5V DC systems.

External DC/DC converter 12~60V (15 watts) DC for output 5V systems.

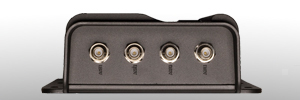

 Ports for Antenna

 4 Ports to connect Antenna / IP65 Sealed

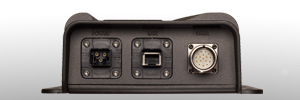

 I/O Parts

 5V DC power connector / IP67 Sealed

 RJ45 connector / IP67 Sealed

 GPIO / IP67 Sealed

 Power

 AC/DC Converter input 110/220V (25watts) AC for output 5V DC systems.

 IP67 Sealed Connectors.

 Power

 External DC/DC converter 12~60V (15 watts) DC input DC/DC for 5V systems.

 IP67 Sealed Connectors.

 Ethernet Cable

 IP67 Sealed Connectors.

 Serial Cable

 IP 67 Sealed Connectors

 Fixed and vehicle mount computers support for RFID, enabling either wired operation

with SmartNL-RF1000.

 Designed by stainless steel, IP65/NEMA 4 sealed unit to meet the hygienic standards in food processing healthcare, chemical and pharmaceutical industries.
